Fundamentals of Bending

1. Types of V-die Bending

1.1 Bending Classification

Bending is classified into three types: Air Bending (Point Contact), Bottoming, and Coining. Among these, Air Bending and Bottoming can also be referred to as Suspended Bending.



Air Bending

Coining



 Diagram

Air Bending

Bottoming







V-Width

12~18t

6~12t

8~6t

TR

2~2.8t

1~2t

0.8t

Bend Angle Tolerance

±48’

±30’

±18’

Surface Quality

Surface with a large radius of curvature

Good

Good

Characteristics

Allows for freely obtaining bend angles

Good bending accuracy can be achieved with relatively low force

Although it achieves excellent angle accuracy, it requires about 8 times the tonnage of bottoming

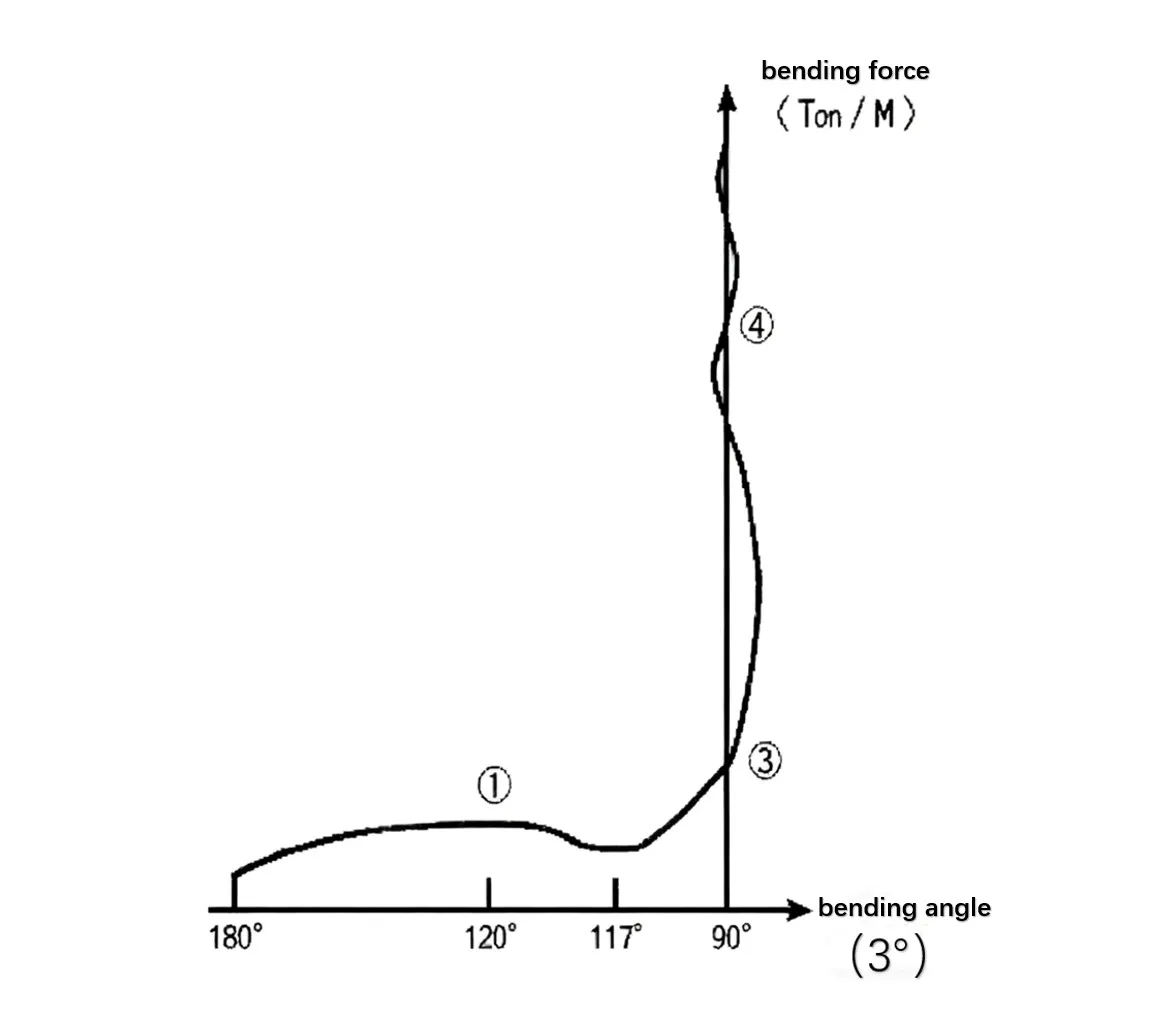

1.2 Bending Angle Curve Diagram

When pressure is applied to the material, a bending curve is obtained as the angle changes. This curve is called the Bending Pressure vs. Bending Angle curve. The diagram on the right shows the curve for SPCC. Initially, the material does not bend completely under the increasing pressure. Subsequently, bending accelerates, and the pressure peaks around 130 degrees (Region ①). At this point, pressure decreases slightly, and the rate of angle change reduces slightly beyond 100 degrees. However, pressure increases again until the material is bent to 90 degrees. The pressure required at this point is called the required bending tonnage (Region ②). Applying further pressure will result in an acute angle, approximately 3-4 degrees less than 90 degrees. This acute angle can be returned to 90 degrees by increasing the pressure. If this pressure is about 6 times the required bending tonnage, the pressure increases sharply while the angle change becomes very small (Region ③).



2. V-die Bending Pressure Calculation Formula

P: V-die Bending Pressure (ton/m)

V: Lower Die Width (mm)

L: Bend Length (mm)

t: Sheet Thickness (mm)

σb: Material Tensile Strength (Kgf/mm²), e.g., σb = 45 for SPCC

C: Compensation Factor, value = 1.5



3. Elongation

3.1 Definition

The ratio of the lengthened part of the outer layer material due to stretching during the bending process to its original flat length.

3.2 Factors Affecting Elongation

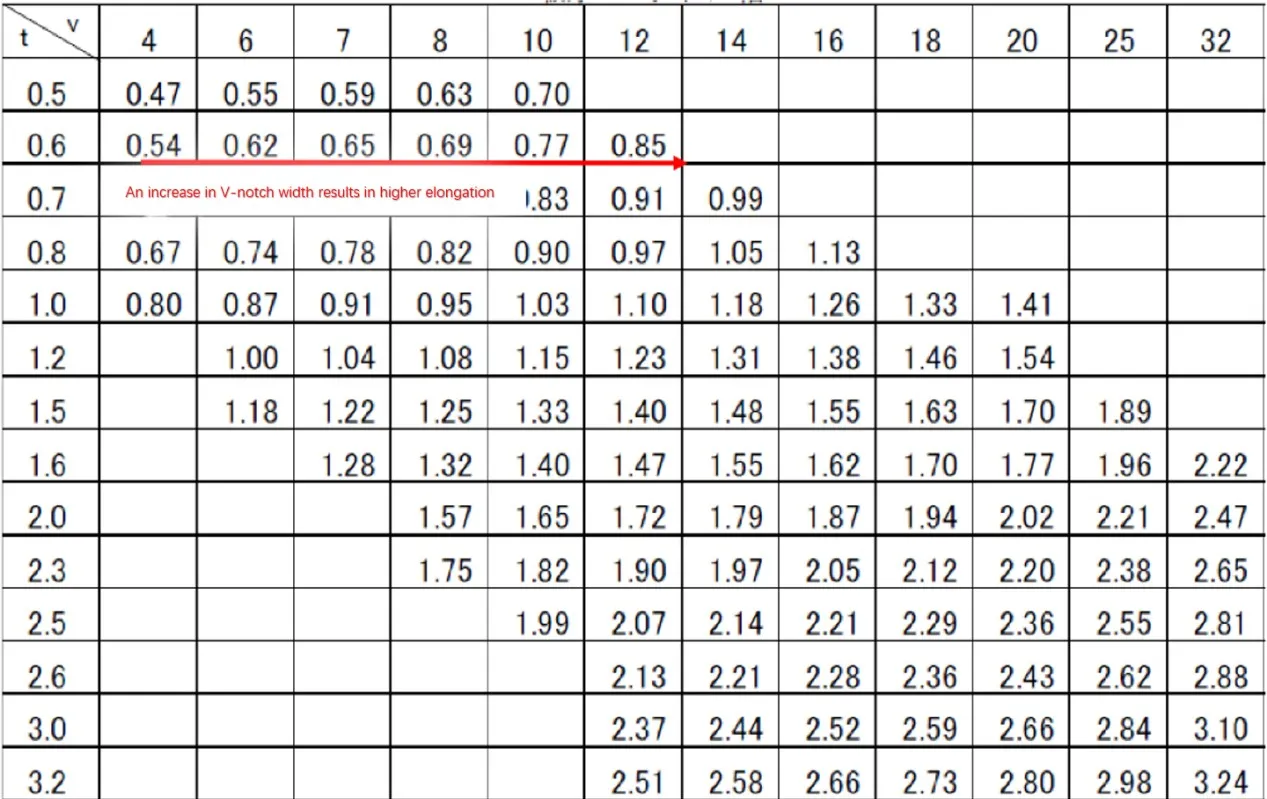

3.2.1  V-die Width (t = sheet thickness, V = lower die width)

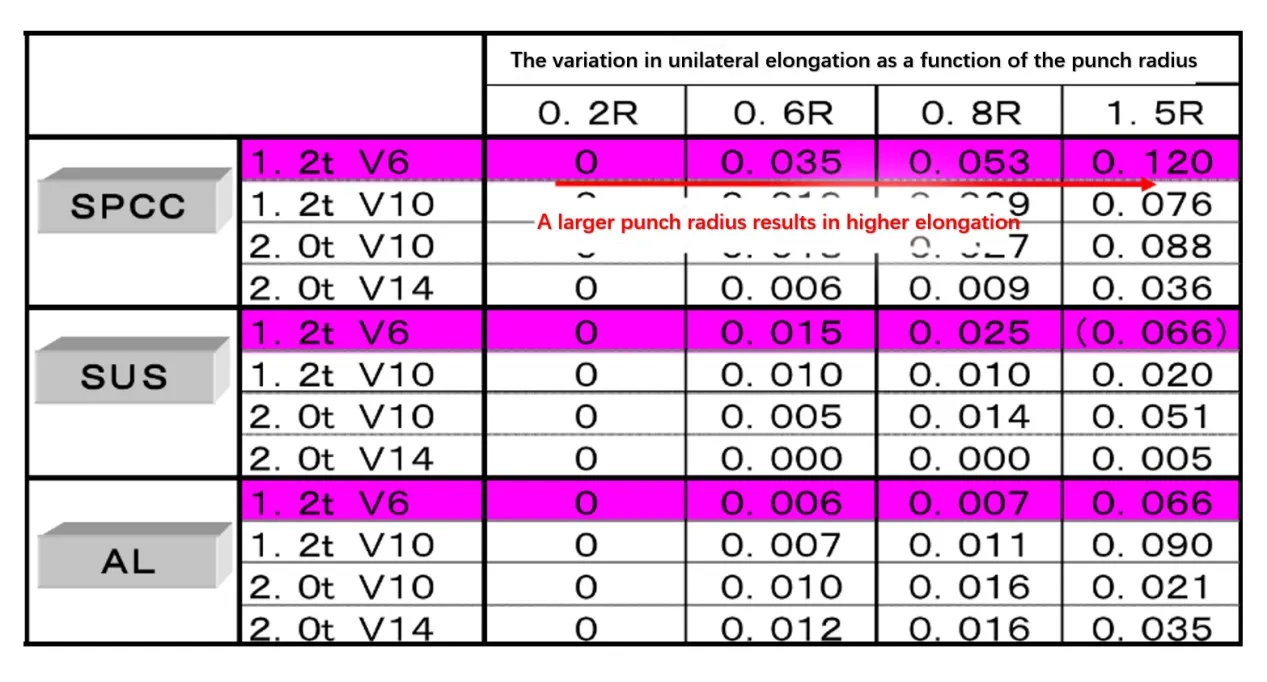

3.2.2  Punch Tip Radius (Change in elongation value relative to a 0.2R benchmark)

4. Springback

4.1 Definition

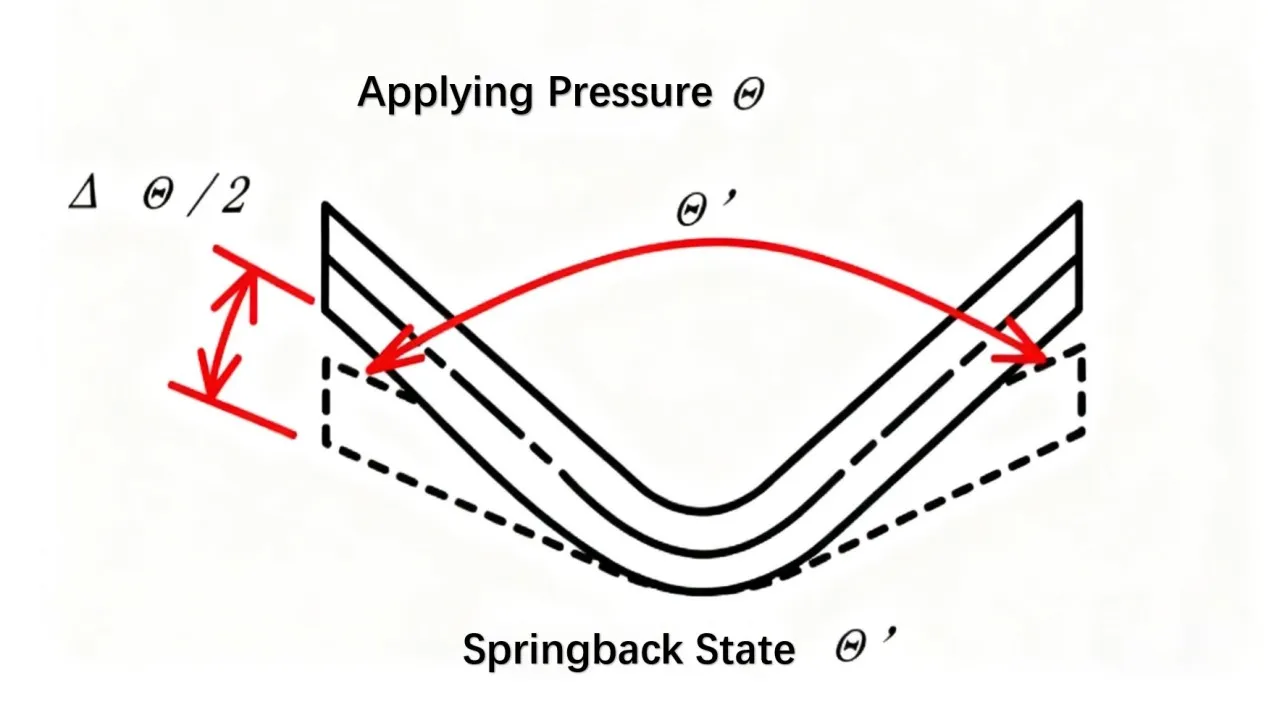

Springback is the elastic recovery of the bend angle after the bending force is removed.

4.2 Causes

4.2.1  Bending is a plastic deformation process; when the pressure is removed, the material undergoes a certain degree of elastic recovery.

4.2.2  Recovery due to internal stresses induced by bending.
