Amada Style

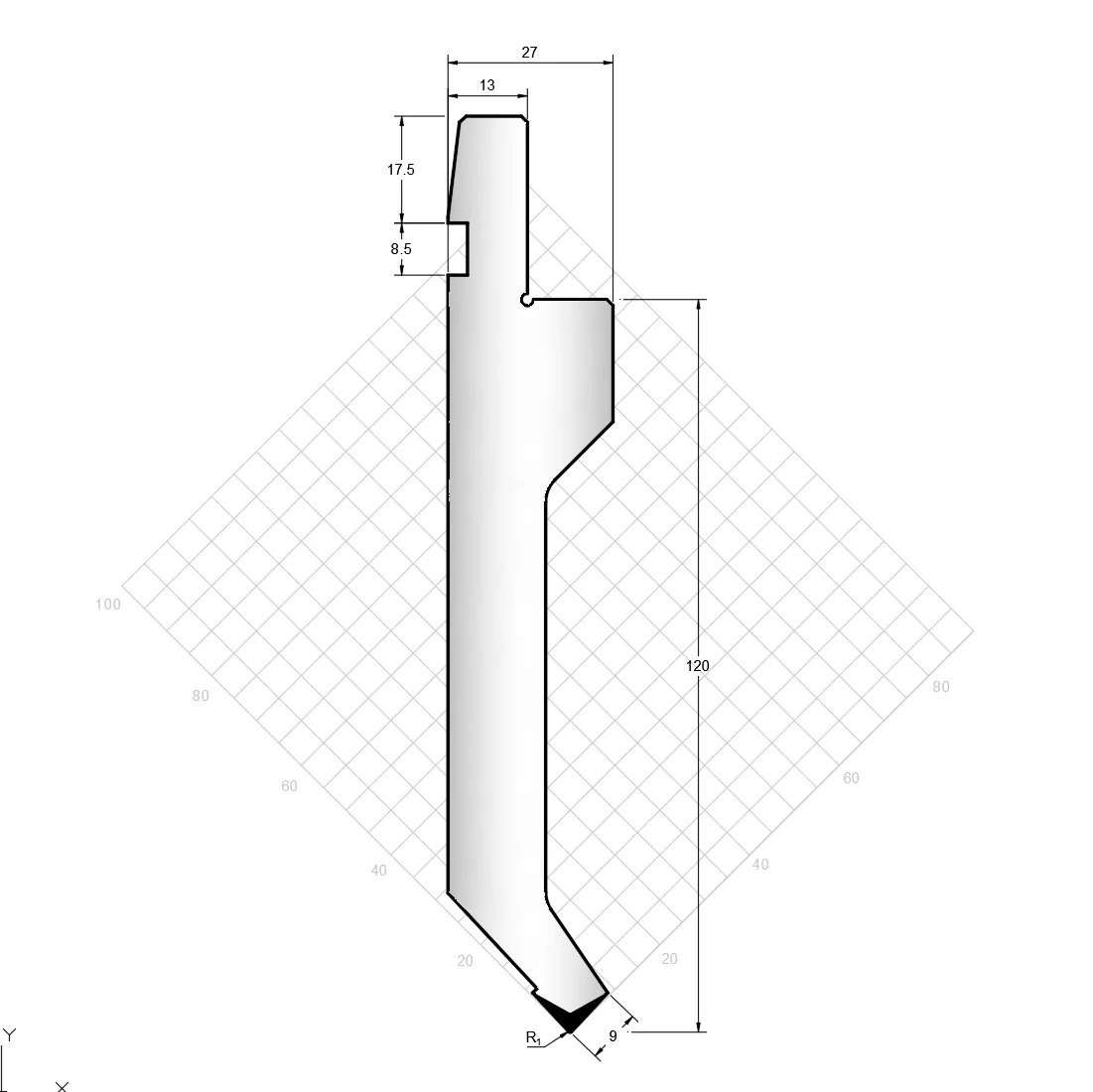

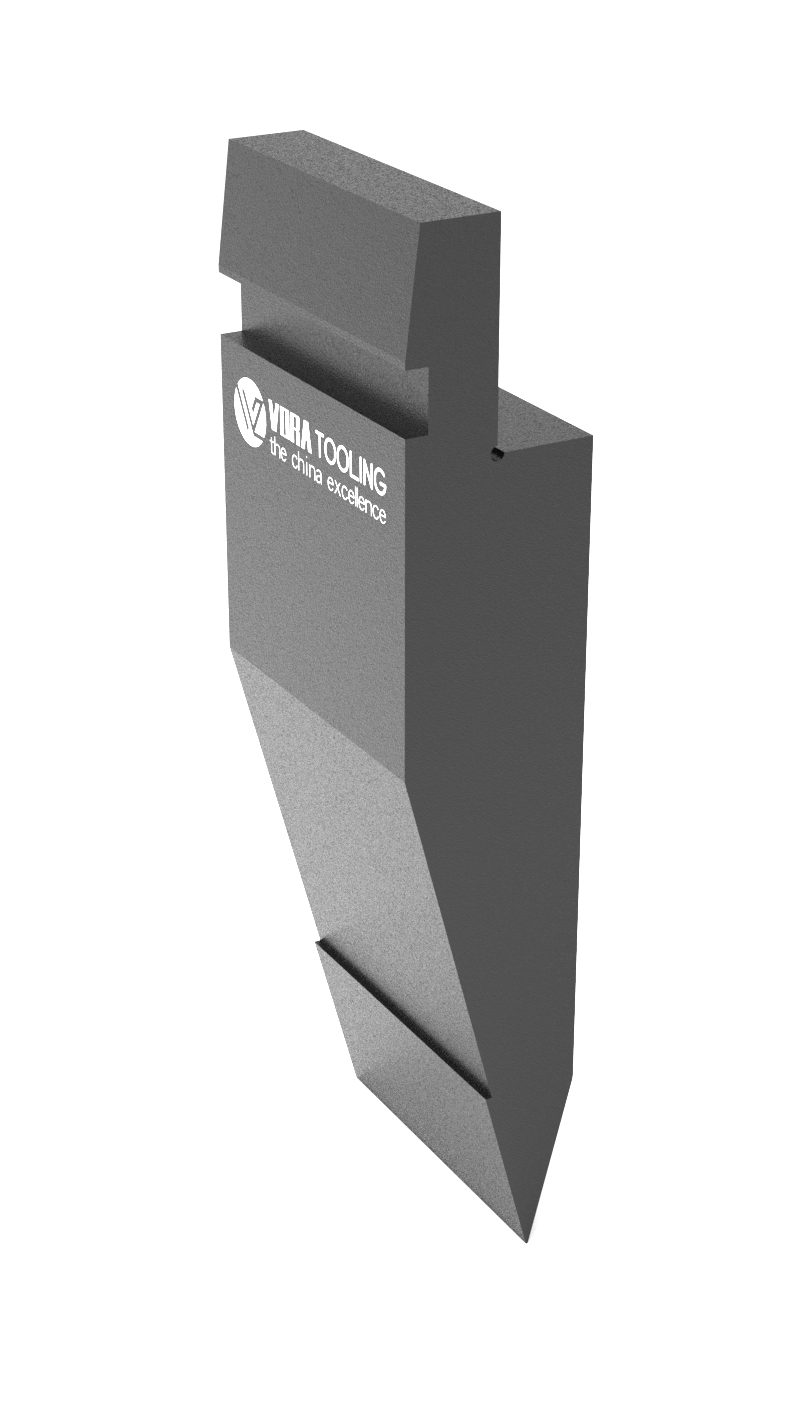

Amada Precision Style Punch AH23100
| AH22100 | ||||
| MOD. | H | A | R | Ton/m |
| AH22100.67.85.03 | 67 | 85° | 0.3 | 100 |
| AH22100.67.85.06 | 67 | 85° | 0.6 | 100 |
| AH22100.67.85.08 | 67 | 85° | 0.8 | 100 |
| AH22100.67.88.03 | 67 | 88° | 0.3 | 100 |
| AH22100.67.88.06 | 67 | 88° | 0.6 | 100 |
| AH22100.67.88.08 | 67 | 88° | 0.8 | 100 |
| AH22100 | ||||
| MOD. | H | A | R | Ton/m |
| AH22100.67.85.03 | 67 | 85° | 0.3 | 100 |
| AH22100.67.85.06 | 67 | 85° | 0.6 | 100 |
| AH22100.67.85.08 | 67 | 85° | 0.8 | 100 |
| AH22100.67.88.03 | 67 | 88° | 0.3 | 100 |
| AH22100.67.88.06 | 67 | 88° | 0.6 | 100 |
| AH22100.67.88.08 | 67 | 88° | 0.8 | 100 |
Previous: No more data
Product Details
◆ Optimum materials:42CrMo4, tempered to 1100 – 1200 N/mm2
◆ Bending radius/intake radii hardened up to 55-60 HRC
◆ Precision ground
◆ Guaranteed exchangeability and parallelism
◆ Tool marking with all technical information
 |
 |
TOOL LENGTHS
DIES
|
Length 835 mm |
Length 415 mm |
 |
 |
800 mm sectionalized
◆ 10 Segments with horn extension left and right
◆ Sectionalized punches/top-tools are delivered as a complete set
◆ Optimum materials:42CrMo4, tempered to 1100 – 1200 N/mm2
◆ Bending radius/intake radii hardened up to 55-60 HRC
◆ Precision ground
◆ Guaranteed exchangeability and parallelism
◆ Tool marking with all technical information
|
|
TOOL LENGTHS
DIES
|
Length 835 mm |
Length 415 mm |
|
|
800 mm sectionalized
◆ 10 Segments with horn extension left and right
◆ Sectionalized punches/top-tools are delivered as a complete set
