Procurement Guide
Ⅰ. Why is it necessary to clarify this information?
The customization of bending dies is extremely strong. The more detalled the information you provide, the moreclosely the dies we make will meet your production requirements, avoiding rework or eficiency losses caused byinconsistent parameters. The following three types of core information are the key basis for our precisecustomization. We suggest you confirm them one by one in combination with your actual productionscenarios.
Ⅱ. Core requirement information: Explain the bending die you need in 2 steps y this information?
Step 1: Clearly define the type of fixture for your bending machine

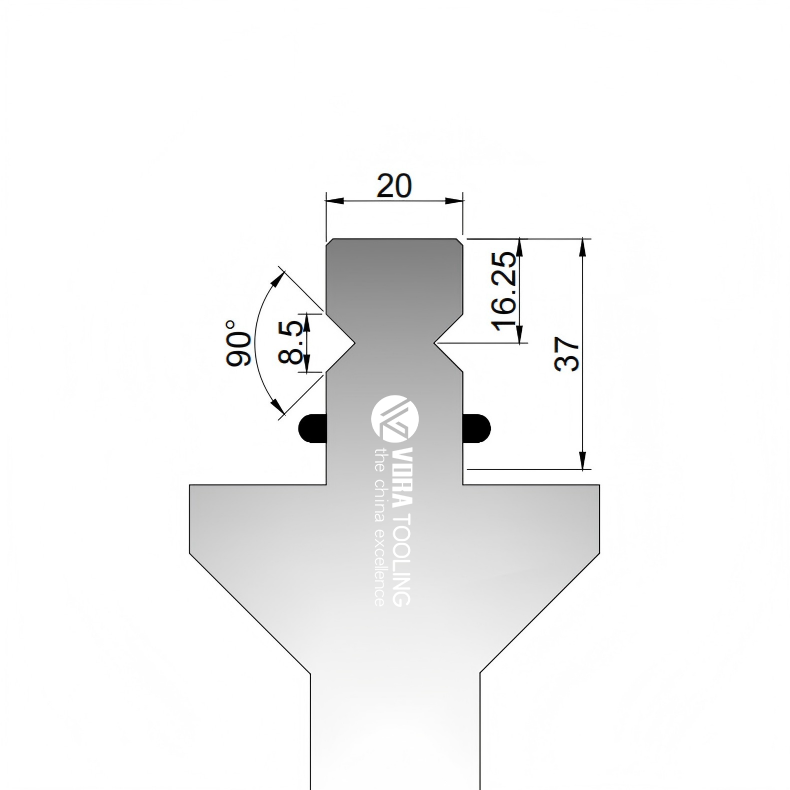

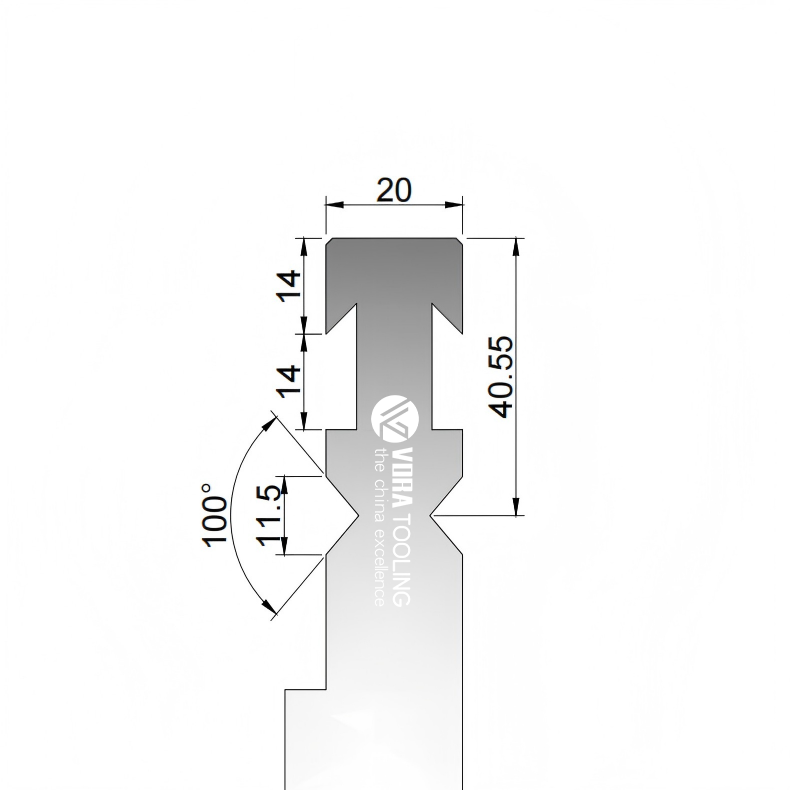

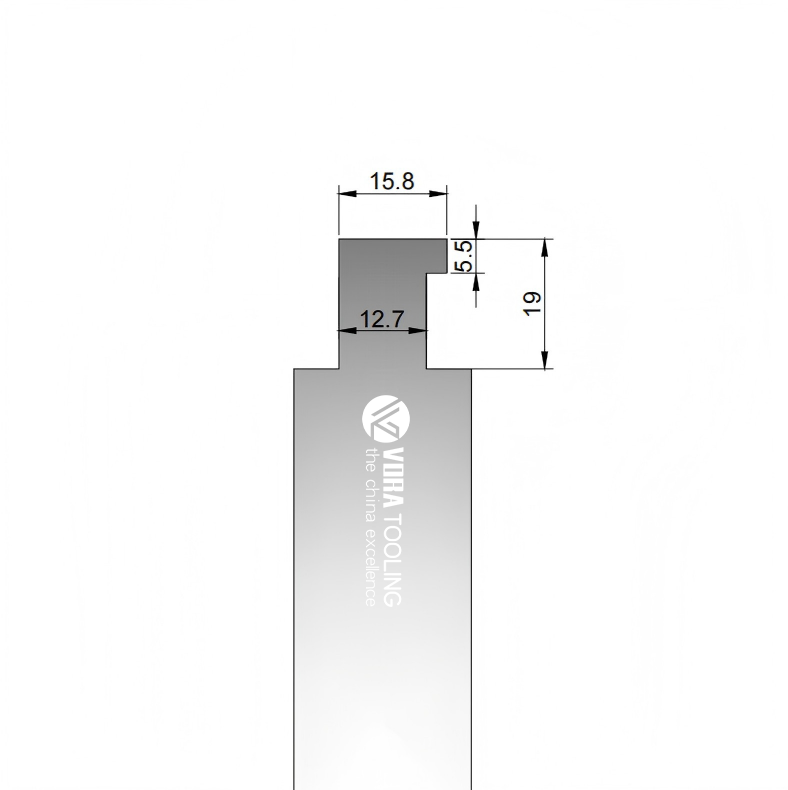

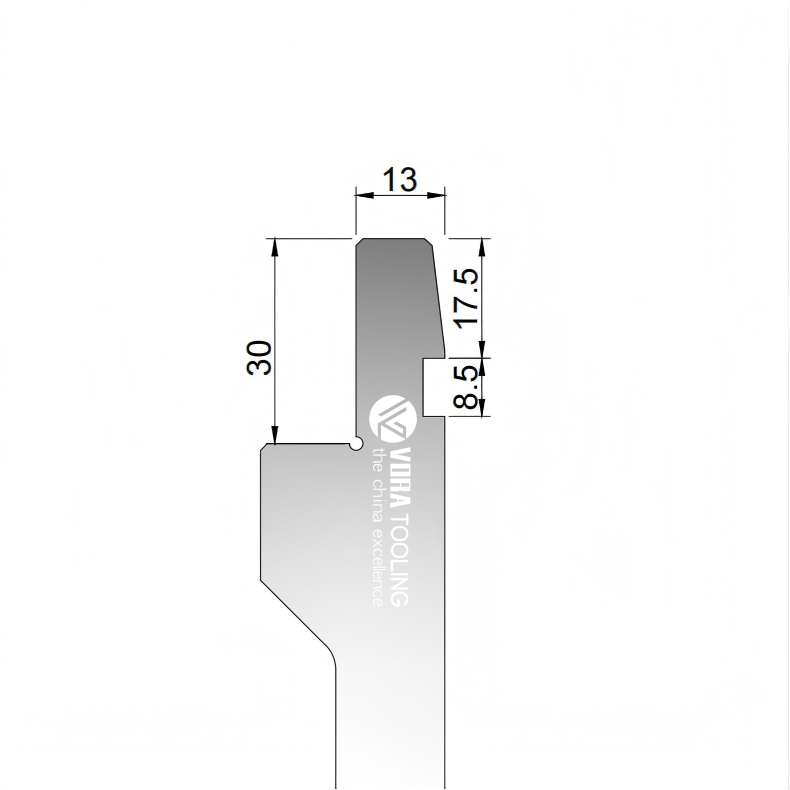

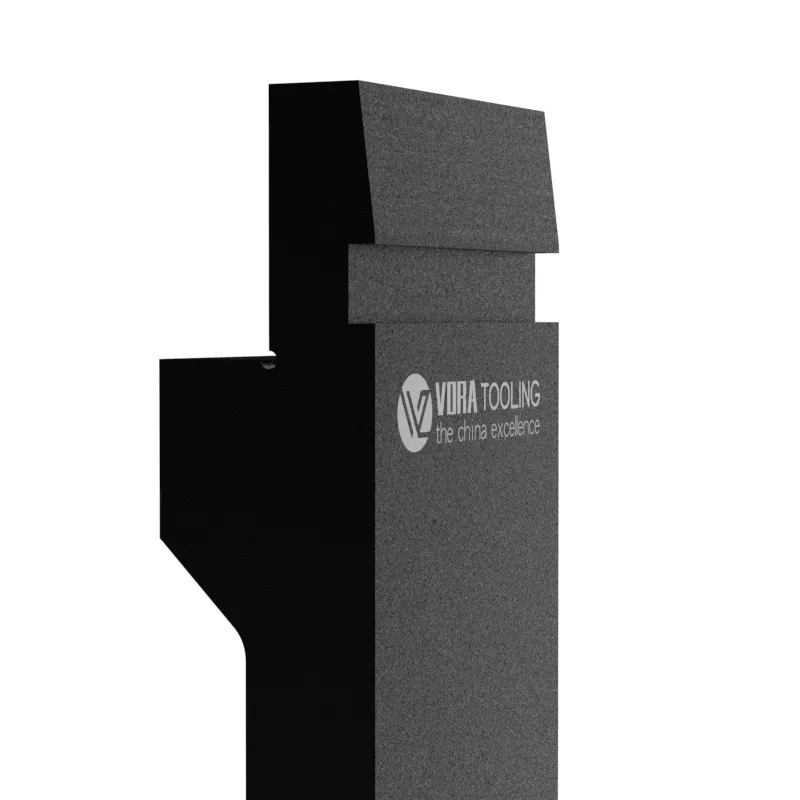

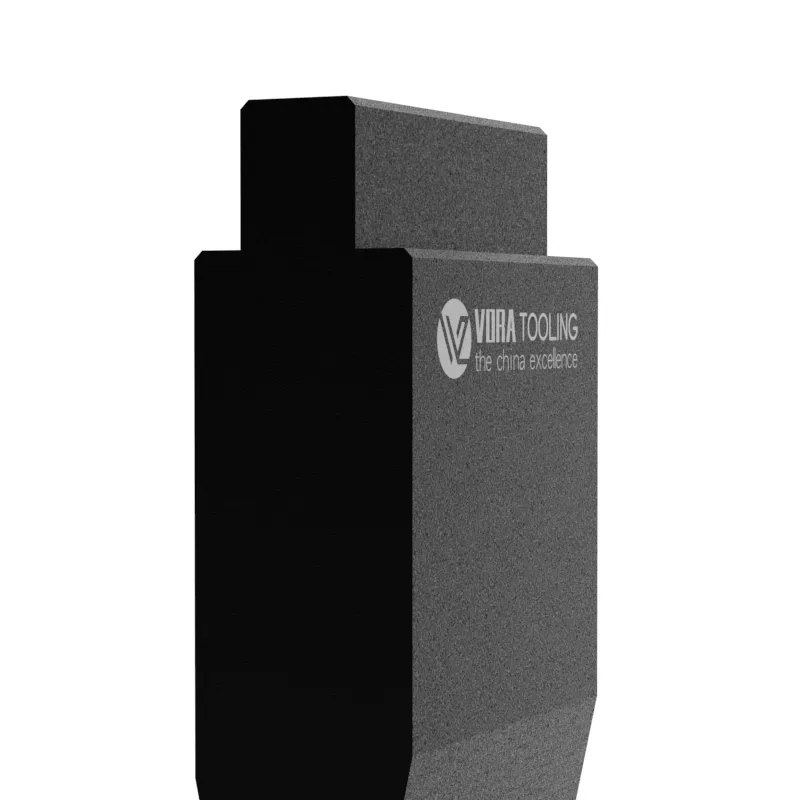

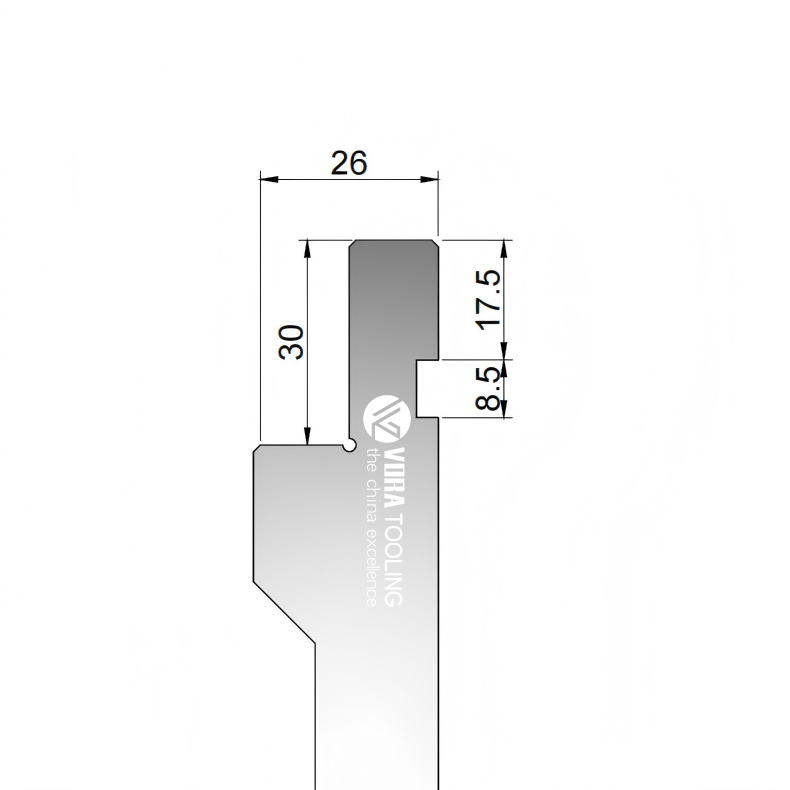

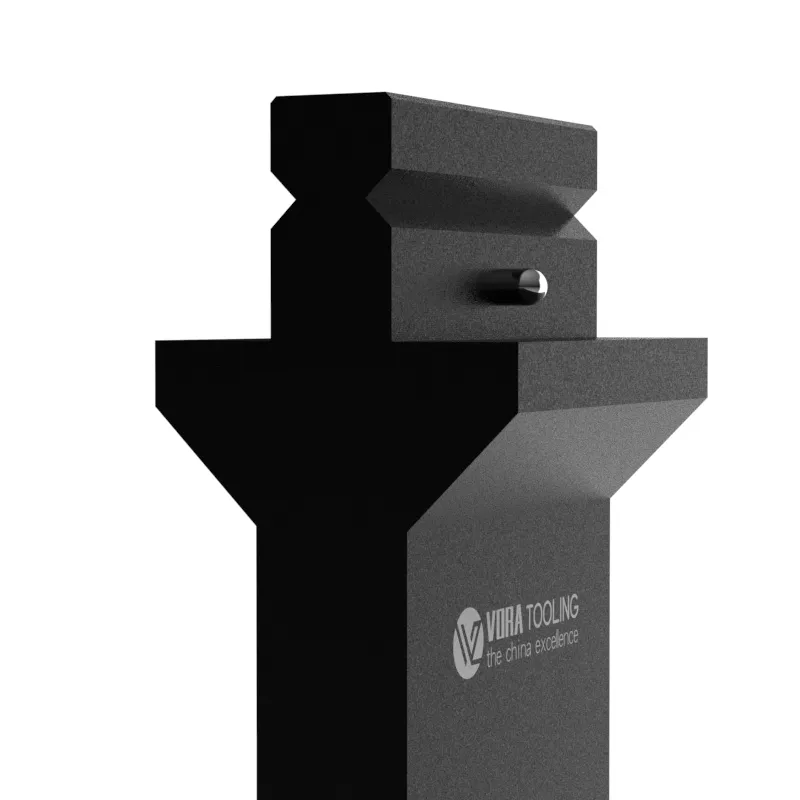

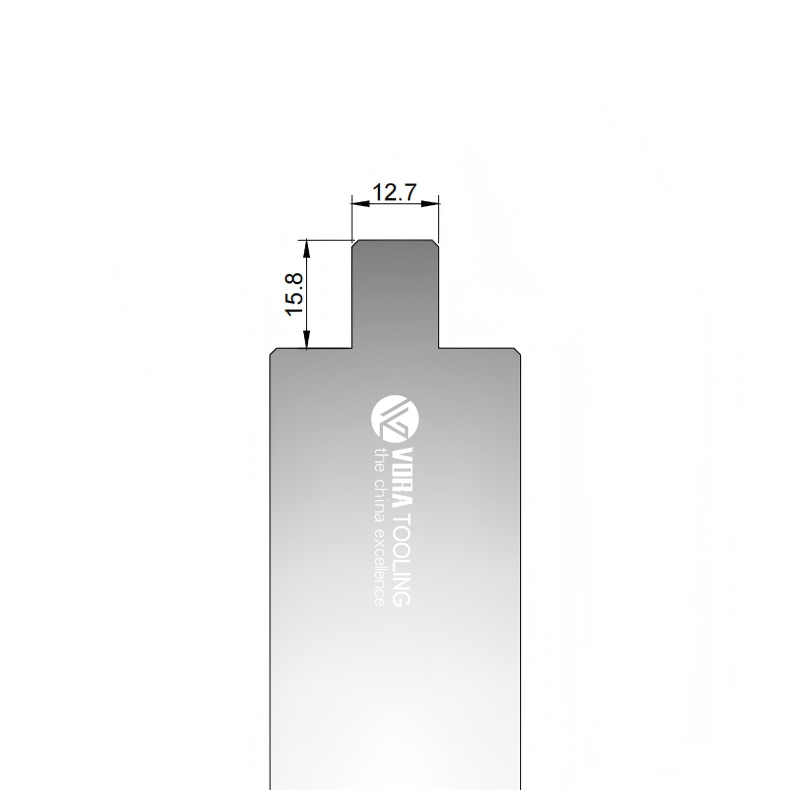

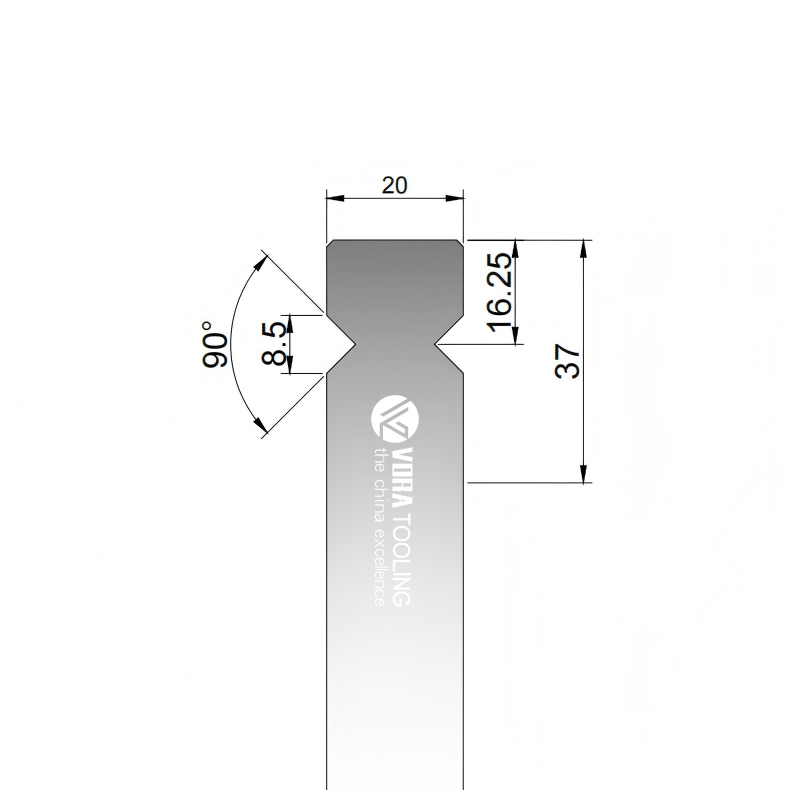

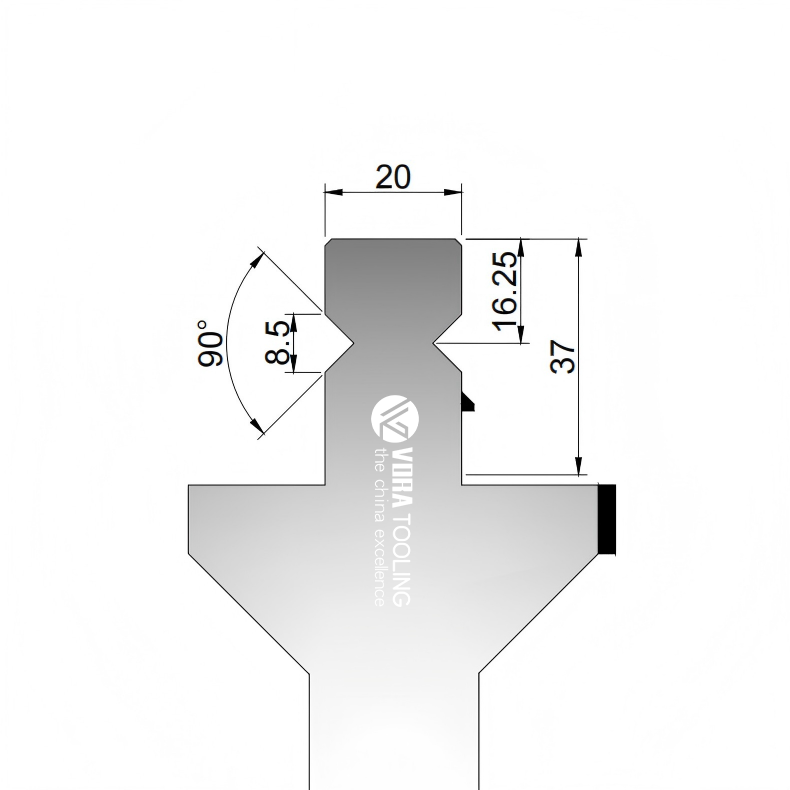

1. Common clamping styles and specifications
If you cannot find what you need in the above types, you can measure and take photos as shown in the illustration and send them to us. We will provide you with more drawings.
Step 2: Explain the method of fixing the lower mold

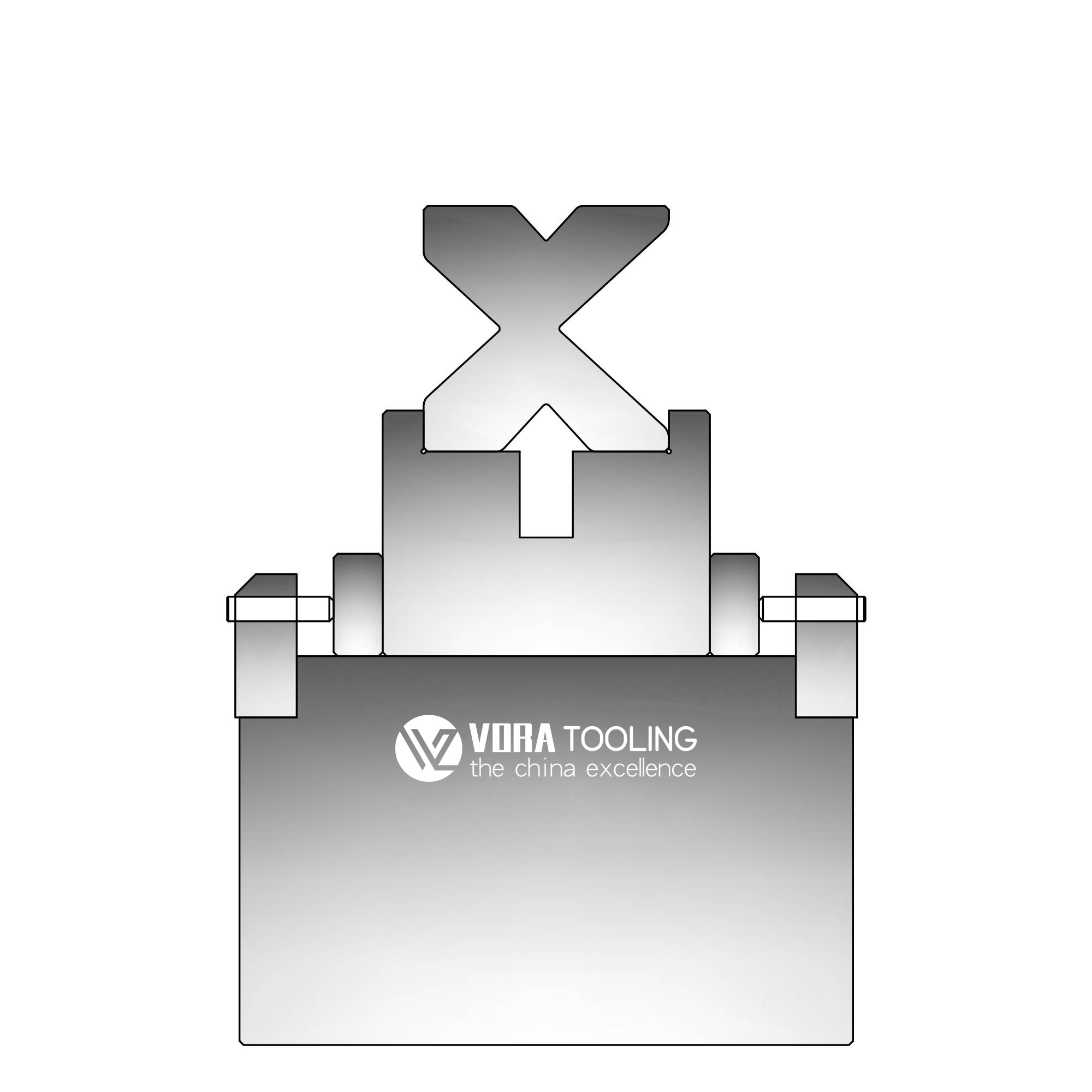

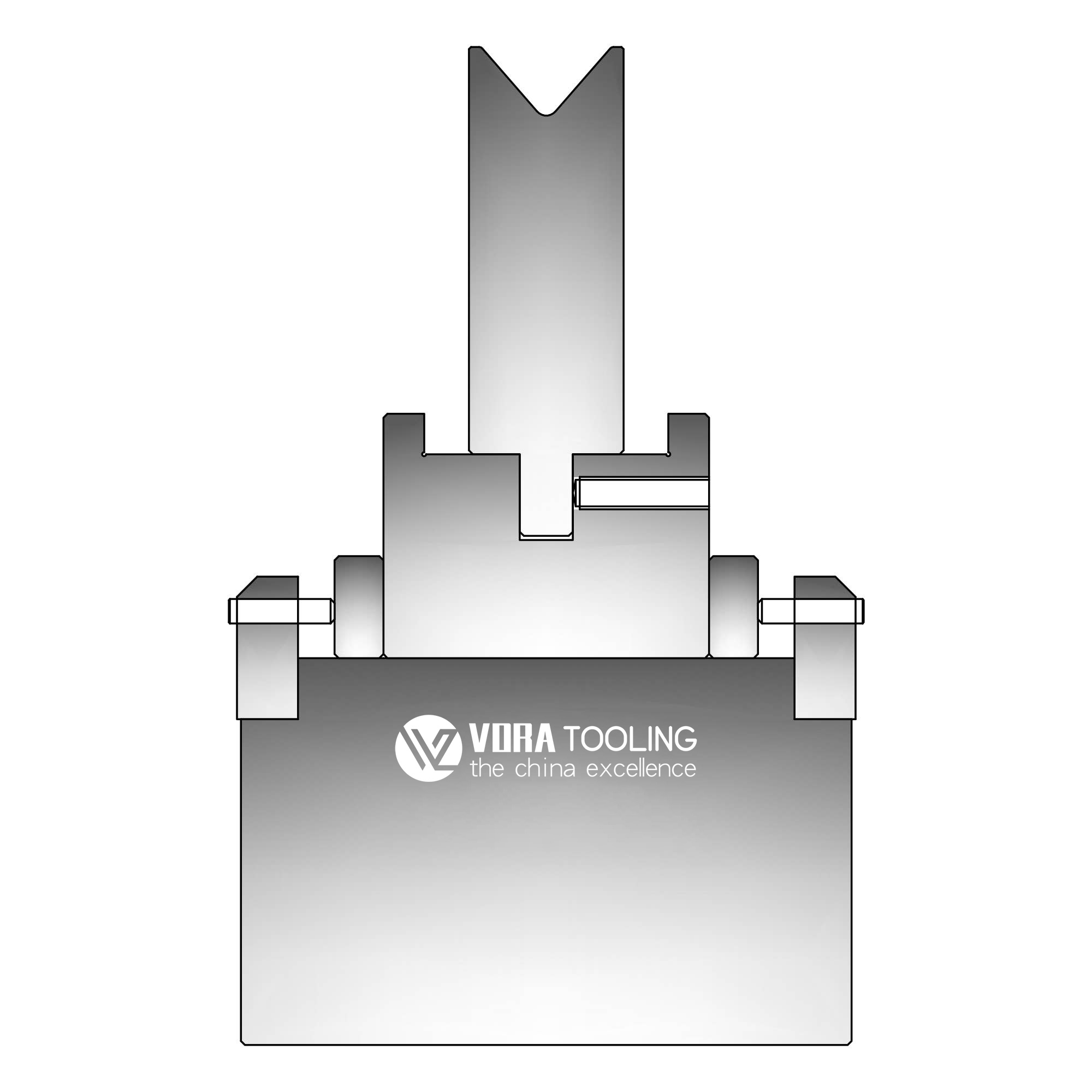

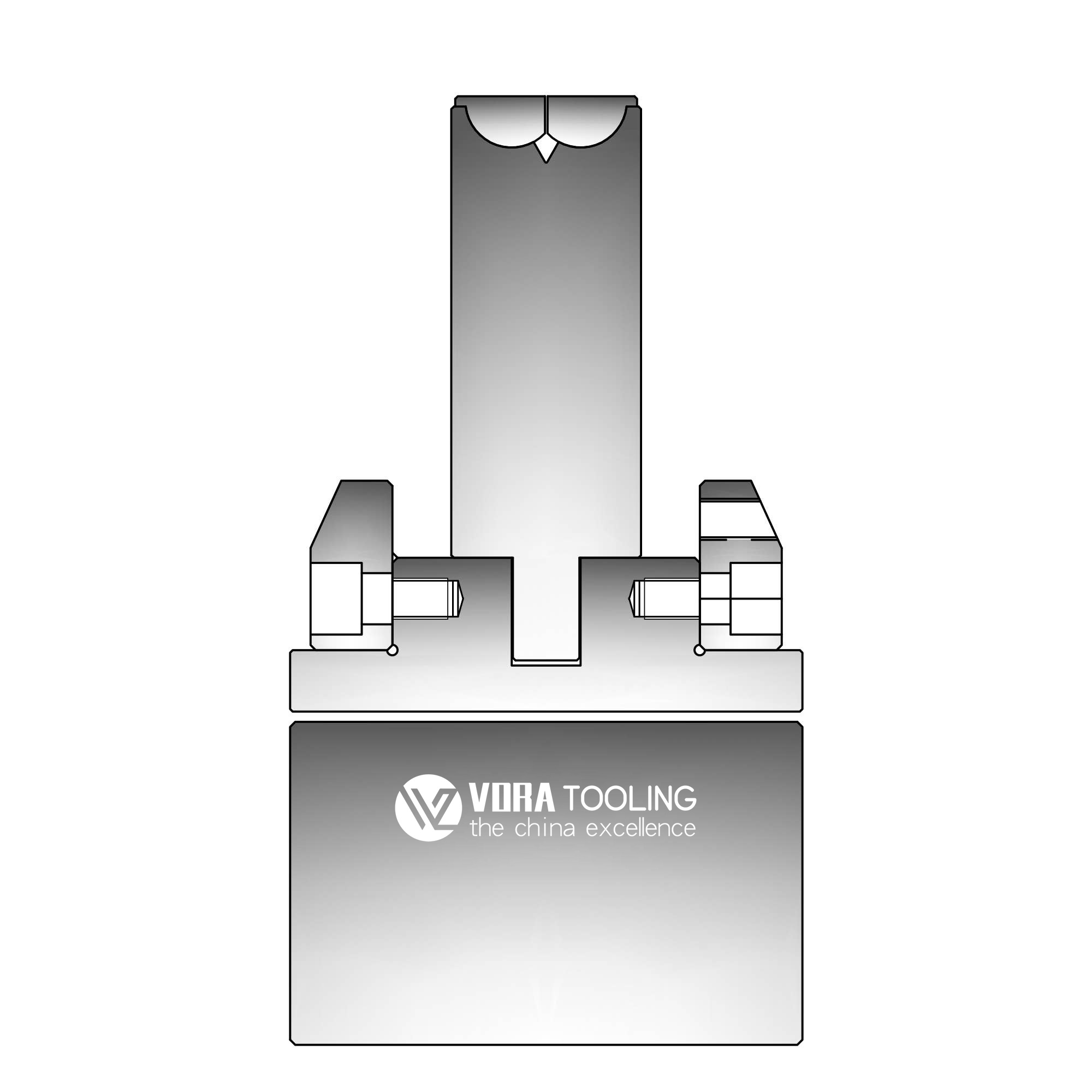

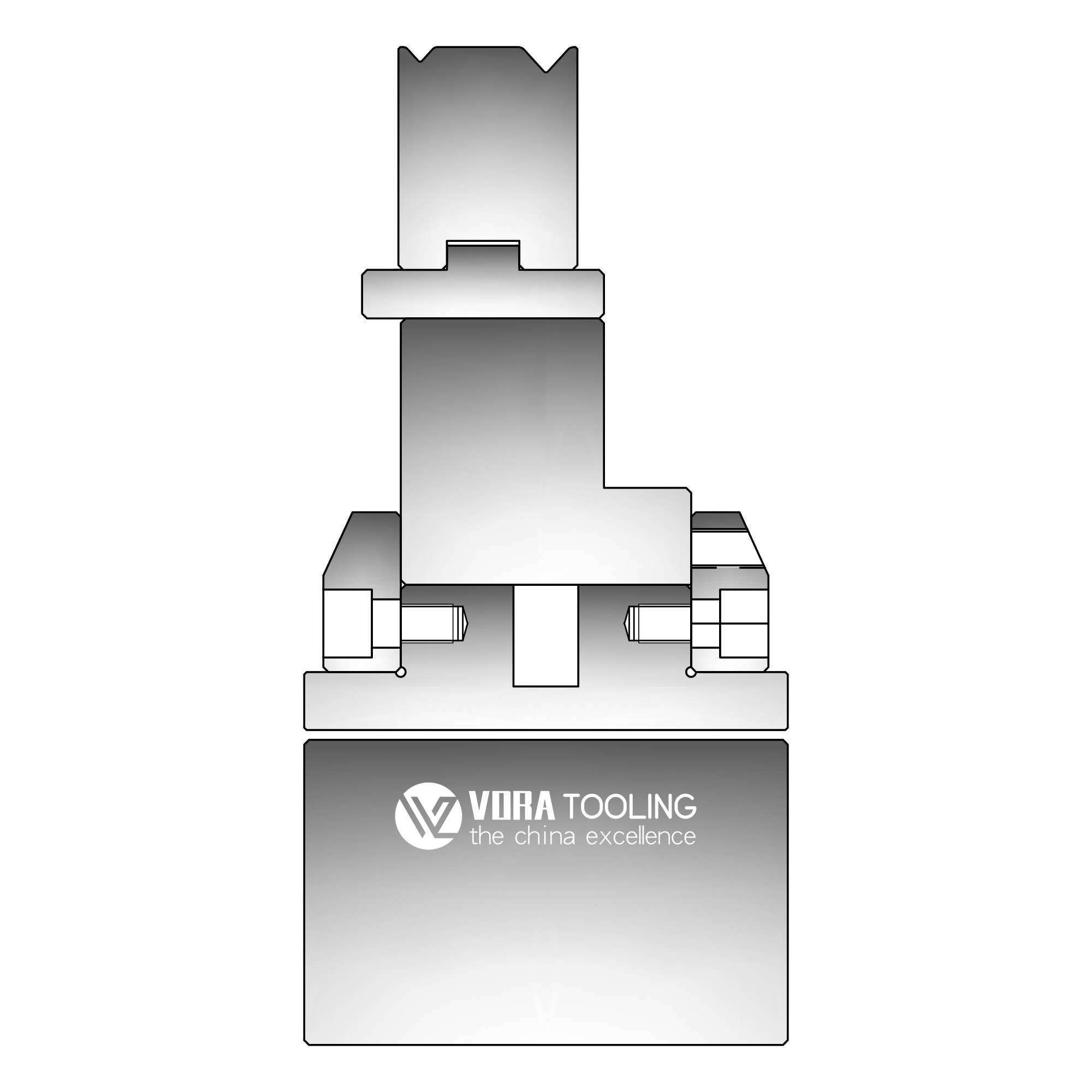

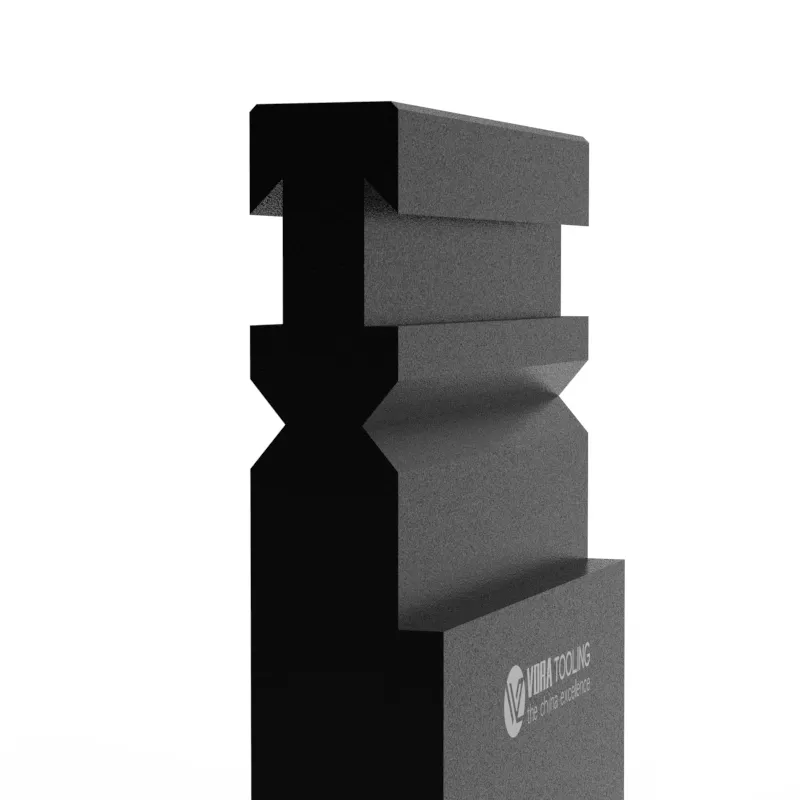

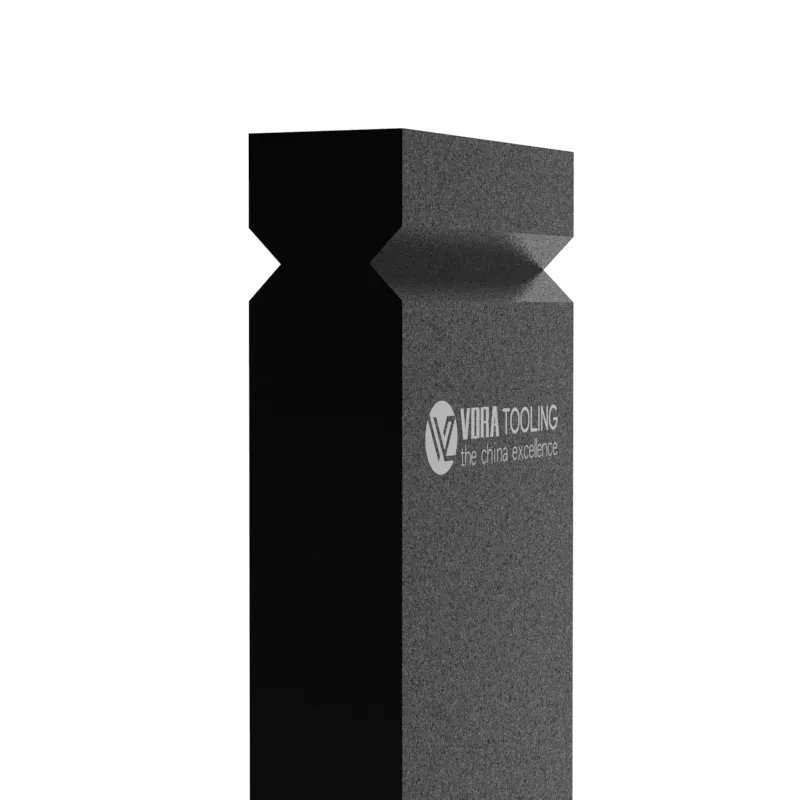

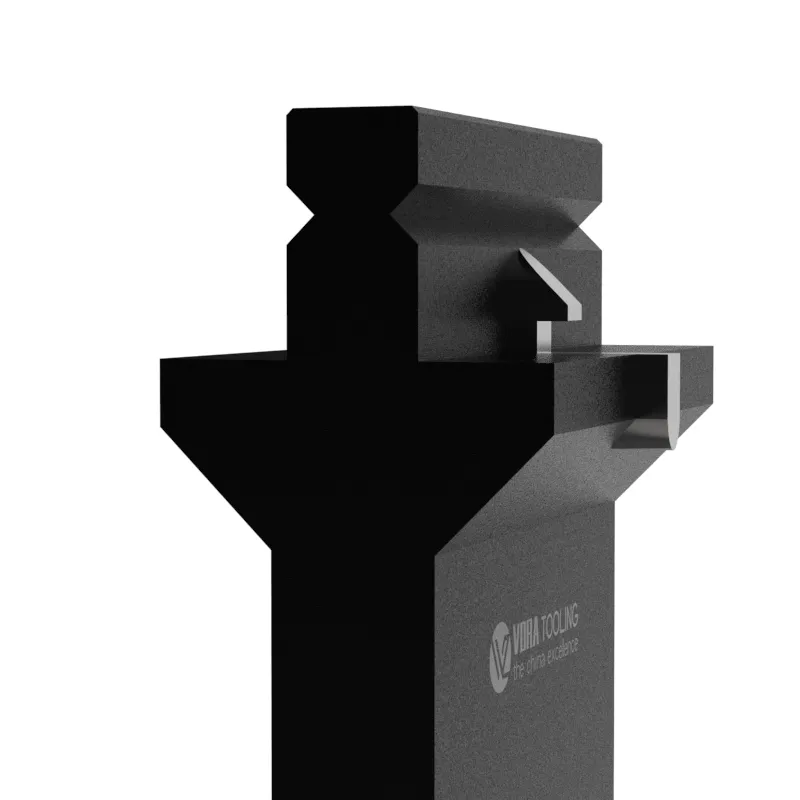

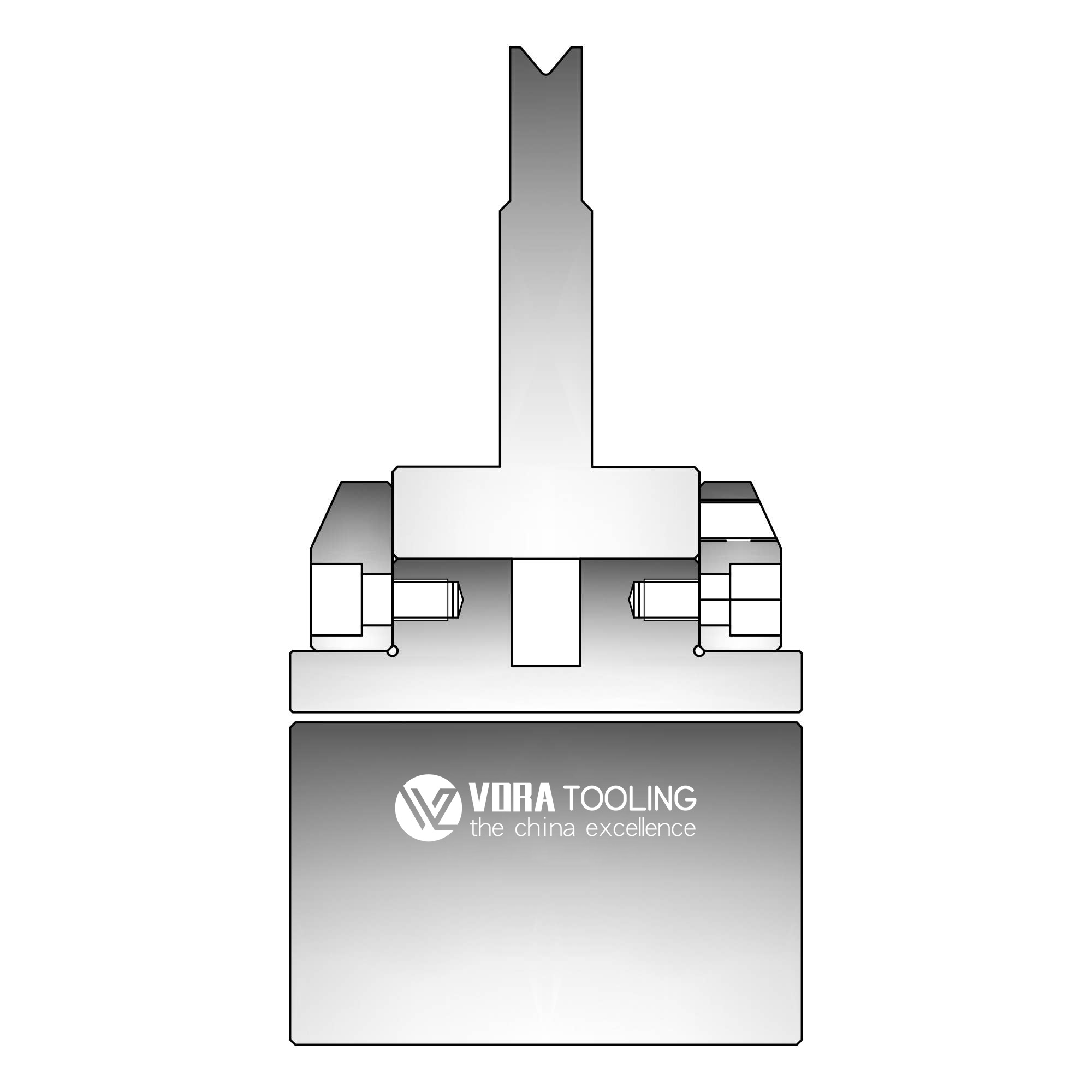

1. Comparison of various mainstream fixed methods

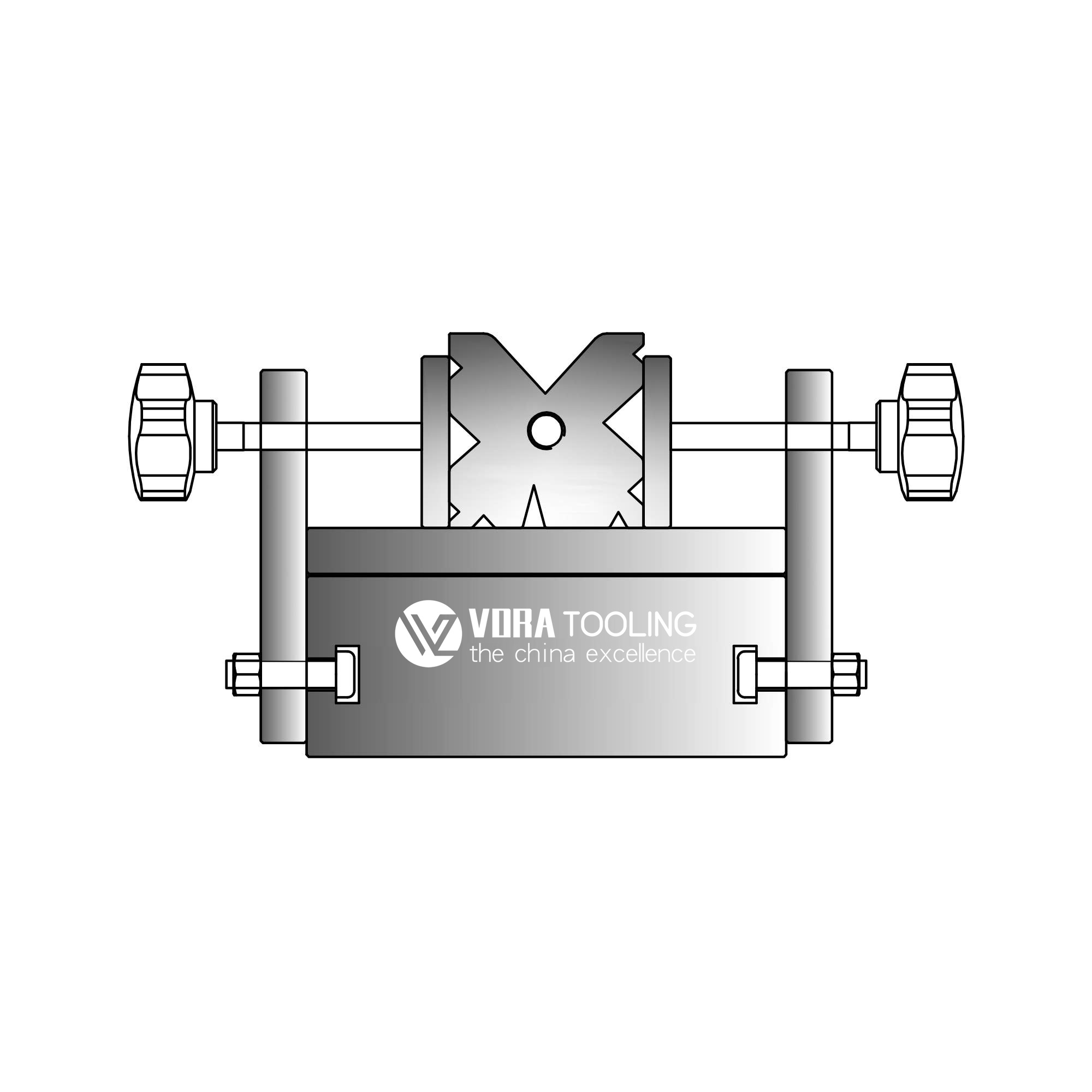

NO.1
NO.2
NO.3
NO.4
NO.5
NO.6

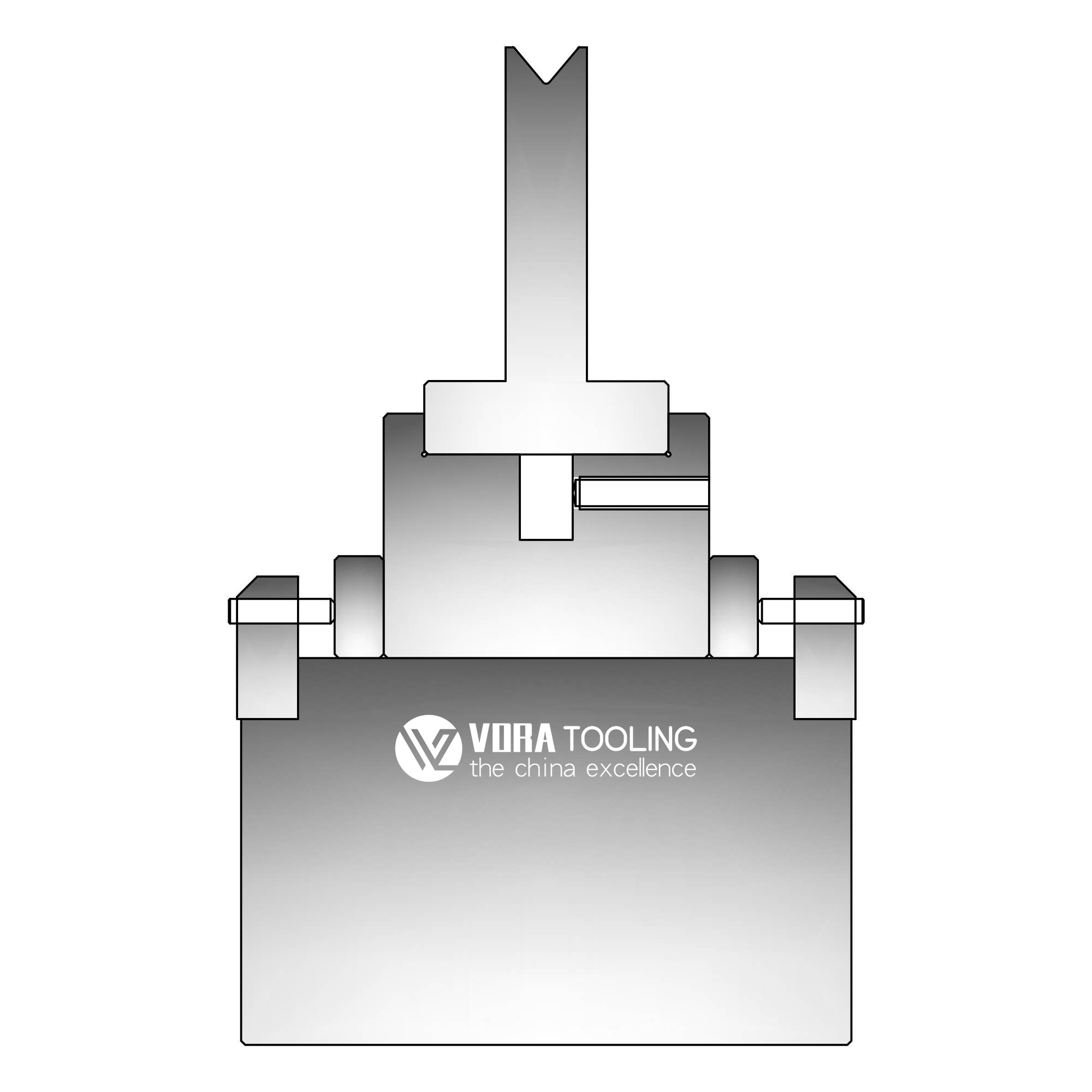

NO.7
If you are not sure about the fixing method, you can take a clear photo of the connection part between the lower mold and the workbench, and we will help you identify it.
Ⅲ. Method of Submitting Requirements
You can synchronize the above information to us in the following ways:
1. Online form: Click the “Request Submission” button at the bottom of the page, fill in the information and upload pictures/drawings
2. Email communication: Send an email to info@voratooling.com with the subject line “bending die requirements + your company name”
3.WhatsApp: Add +86 188 5556 8846, and our technical specialist will assist you insorting out your requirements
IV、Frequently Asked Questions
Q: Can l just take photos without CAD drawings?
A: Sure! lt is recommended to take three close-up photos of the workpiece, namely the front, side and bendincpart, and mark the key dimensions (you can use the drawing tool on your mobile phone for marking).
2.Q: What should do if l’m not sure about the model of the bending machine fixture?
A: Take three photos of the “brand logo”, “fixture as a whole” and “operation panel parameters” of the bendingmachine, We can check the fixture specifications throuah the brand and model.
Q: lf the precision requirements of the workpiece are not clear, will it affect the customization of the mold?
A: Yes! lf you do not specify the precision, we will manufacture it according to the industry standard precision(such as Anale error <1°). lf higher precision is reguired, please inform us in advance so that we can adjust theprocessing technology.
